Description of the project:
GSM based Power Transformer Parameter fault detection project can be used to detect the fault in Power transformers. Various parameters like Oil level, Temperature, voltage, and current are monitored.
Description in detail:
It contains the following blocks
- Oil level sensor
- Temperature sensor
- Potentiometer for Current
- Potentiometer for Voltage
- Analog to digital converter
- Microcontroller
- GSM modem
- Relay
- Buzzer
- LCD display
Video of the project “GSM based Power Transformer Parameter fault detection System”:

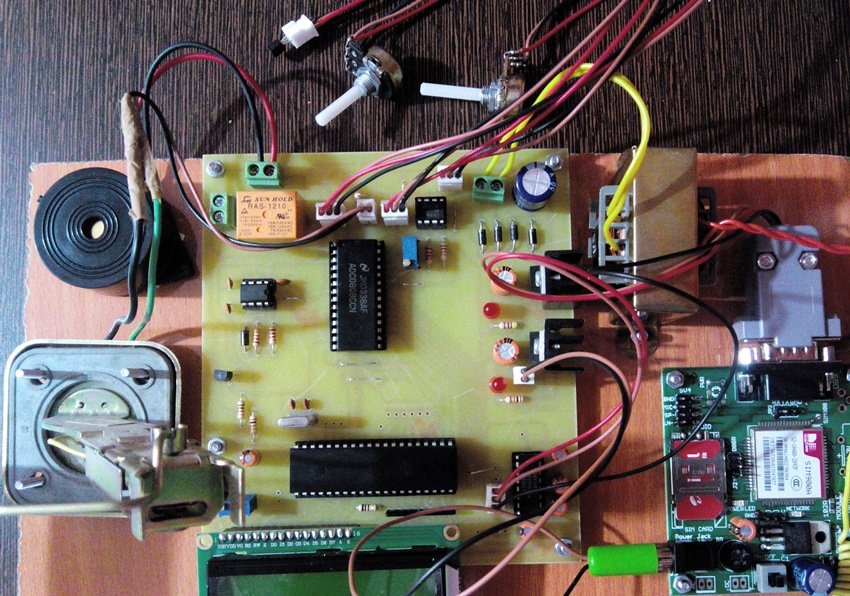

Photographs of GSM based Power Transformer Parameter fault detection system:
Block Diagram:
You will get the following documents with this project:
- Project Report in doc (word) format
- Circuit diagram
- PCB layout
- Microcontroller program in assembly language
- Hex file of the microcontroller code
- Datasheets of all the components / ICs used in the project
Applications and Advantages of GSM based Power Transformer Parameter fault detection:
1. This can be used in large power generation and distribution plants.
Future Development:
1. We can monitor more parameters
Which types of sensors are used with name n price?
Hi Akshay hanumante, We have used 3 sensors. Liquid level sensor, LM35 as a Temperature sensor and Potentiometer to generate variable voltage for a Voltage sensor.
Please specific name of liquid level sensor? or If give me specific name of oil level sensor.
Hi Akshay hanumante, this sensor is not specifically for Oil. We can use it for any type of liquid. It can measure level of any liquid.
give me big size photograph of this project…..this project is look like a ready made project???
i want fault detection in which place using gsm mode
pls tell me how the sensors are connected to the transformer
which type of ckt you are use in fault detection? please give the replay.
sir i want only temprature , curent and vtg sensor…….can i order this..???
